The company mainly produces and sells various types of fixed resistors such as chip resistors, network resistors, plug-in resistors, cement resistors, and power resistors. Its customers are located in major cities in China and exported to Europe, America,

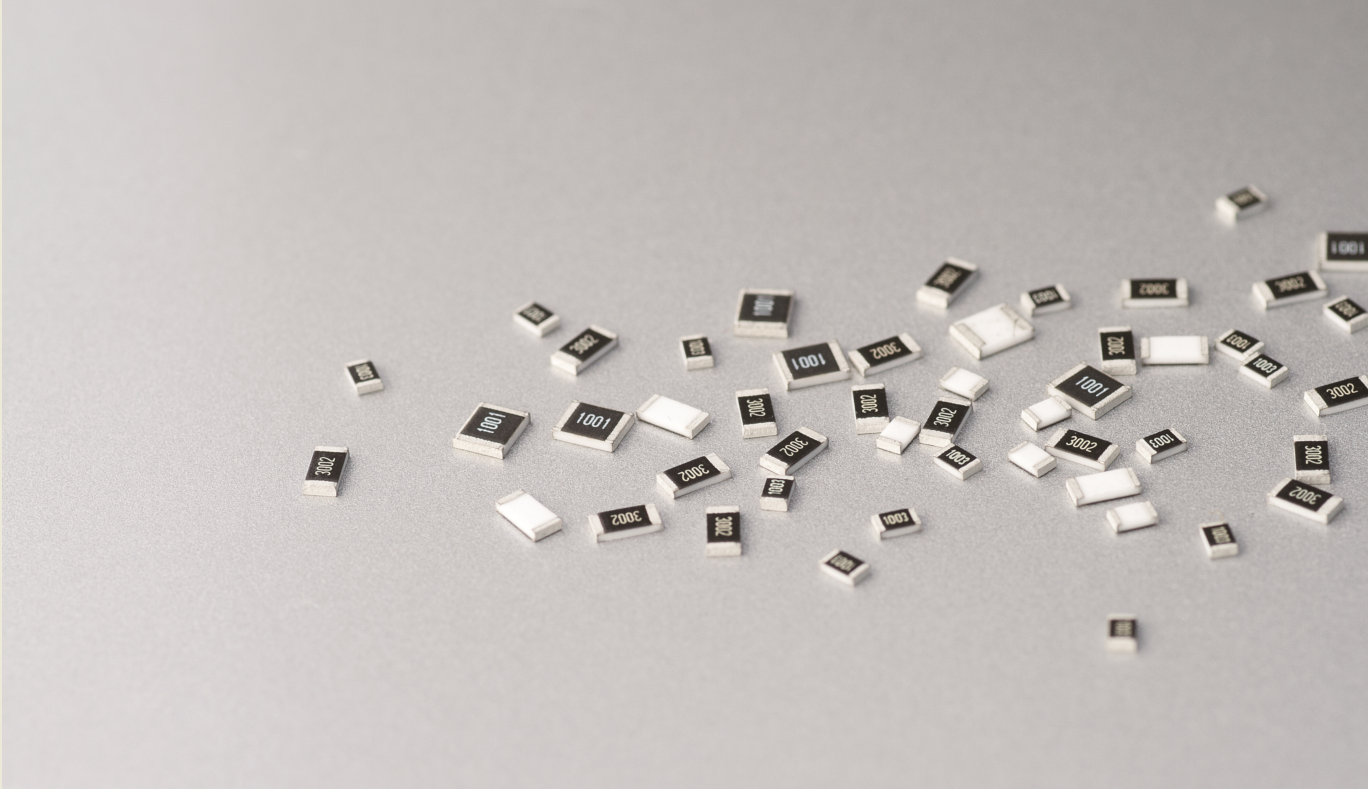

Current location:Home > Products >Thick Film Chip Resistors > High-Power Thick Film Chip Resistors-HP
Click to show
Series | Product Name | Photo | Power | Specifications | Temperature coefficient | Precision | Resistance segment | Specifications | Details |
---|---|---|---|---|---|---|---|---|---|
HP | High-Power Thick Film Chip Resistors | 2W | HP12 | ±1% ±5% | 0Ω | File size:773.01 KB |
Details | ||
HP | High-Power Thick Film Chip Resistors | 2W | HP12 | ±75ppm/℃ | ±1% ±5% | 50mΩ≤R≤10MΩ | File size:773.01 KB |
Details | |
HP | High-Power Thick Film Chip Resistors | 2W | HP12 | 0~±400ppm/℃ | ±1% ±5% | 20mΩ≤R<50mΩ | File size:773.01 KB |
Details | |
HP | High-Power Thick Film Chip Resistors | 2W | HP12 | 0~±800ppm/℃ | ±1% ±5% | 10mΩ≤R<20mΩ | File size:773.01 KB |
Details | |
HP | High-Power Thick Film Chip Resistors | 1.25W | HP11 | ±1% ±5% | 0Ω | File size:773.01 KB |
Details | ||
HP | High-Power Thick Film Chip Resistors | 1.25W | HP11 | ±100ppm/℃ | ±1% ±5% | 0.1Ω≤R≤10MΩ | File size:773.01 KB |
Details | |
HP | High-Power Thick Film Chip Resistors | 1W | HP10 | ±1% ±5% | 0Ω | File size:773.01 KB |
Details | ||
HP | High-Power Thick Film Chip Resistors | 1W | HP10 | ±100ppm/℃ | ±1% ±5% | 50mΩ≤R≤10MΩ | File size:773.01 KB |
Details | |
HP | High-Power Thick Film Chip Resistors | 1W | HP10 | 0~+600ppm/℃ | ±1% ±5% | 15mΩ≤R<50mΩ | File size:773.01 KB |
Details | |
HP | High-Power Thick Film Chip Resistors | 1W | HP10 | 0~+800ppm/℃ | ±1% ±5% | 10mΩ≤R<15mΩ | File size:773.01 KB |
Details | |
HP | High-Power Thick Film Chip Resistors | 3/4W | HP07 | ±1% ±5% | 0Ω | File size:773.01 KB |
Details | ||
HP | High-Power Thick Film Chip Resistors | 3/4W | HP07 | ±100ppm/℃ | ±1% ±5% | 0.1Ω≤R≤10MΩ | File size:773.01 KB |
Details | |
HP | High-Power Thick Film Chip Resistors | 1/2W | HP06 | ±1% ±5% | 0Ω | File size:773.01 KB |
Details | ||
HP | High-Power Thick Film Chip Resistors | 1/2W | HP06 | ±100ppm/℃ | ±1% ±5% | 0.1Ω≤R≤10MΩ | File size:773.01 KB |
Details | |
HP | High-Power Thick Film Chip Resistors | 1/2W | HP06 | ±150ppm/℃ | ±1% ±5% | 50mΩ≤R<0.1Ω | File size:773.01 KB |
Details | |
HP | High-Power Thick Film Chip Resistors | 1/2W | HP06 | ±300ppm/℃ | ±1% ±5% | 30mΩ≤R<50mΩ | File size:773.01 KB |
Details | |
HP | High-Power Thick Film Chip Resistors | 1/2W | HP06 | ±400ppm/℃ | ±1% ±5% | 15mΩ≤R<30mΩ | File size:773.01 KB |
Details | |
HP | High-Power Thick Film Chip Resistors | 1/2W | HP06 | ±700ppm/℃ | ±1% ±5% | 10mΩ≤R<15mΩ | File size:773.01 KB |
Details | |
HP | High-Power Thick Film Chip Resistors | 1/3W | HP05 | ±1% ±5% | 0Ω | File size:773.01 KB |
Details | ||
HP | High-Power Thick Film Chip Resistors | 1/3W | HP05 | ±100ppm/℃ | ±1% ±5% | 0.1Ω≤R≤10MΩ | File size:773.01 KB |
Details | |
HP | High-Power Thick Film Chip Resistors | 1/3W | HP05 | ±200ppm/℃ | ±1% ±5% | 50mΩ<R≤0.1Ω | File size:773.01 KB |
Details | |
HP | High-Power Thick Film Chip Resistors | 1/3W | HP05 | ±400ppm/℃ | ±1% ±5% | 25mΩ<R≤50mΩ | File size:773.01 KB |
Details | |
HP | High-Power Thick Film Chip Resistors | 1/3W | HP05 | ±600ppm/℃ | ±1% ±5% | 15mΩ<R≤25mΩ | File size:773.01 KB |
Details | |
HP | High-Power Thick Film Chip Resistors | 1/3W | HP05 | ±800ppm/℃ | ±1% ±5% | 10mΩ≤R≤15mΩ | File size:773.01 KB |
Details | |
HP | High-Power Thick Film Chip Resistors | 1/5W | HP03 | ±1% ±5% | 0Ω | File size:773.01 KB |
Details | ||
HP | High-Power Thick Film Chip Resistors | 1/5W | HP03 | ±100ppm/℃ | ±1% ±5% | 0.2Ω≤R≤10MΩ | File size:773.01 KB |
Details | |
HP | High-Power Thick Film Chip Resistors | 1/5W | HP03 | ±200ppm/℃ | ±1% ±5% | 0.1Ω≤R<0.2Ω | File size:773.01 KB |
Details | |
HP | High-Power Thick Film Chip Resistors | 1/10W | HP02 | ±1% ±5% | 0Ω | File size:773.01 KB |
Details | ||
HP | High-Power Thick Film Chip Resistors | 1/10W | HP02 | ±100ppm/℃ | ±1% ±5% | 100Ω<R≤10MΩ | File size:773.01 KB |
Details | |
HP | High-Power Thick Film Chip Resistors | 1/10W | HP02 | ±200ppm/℃ | ±1% ±5% | 10Ω<R≤100Ω | File size:773.01 KB |
Details | |
HP | High-Power Thick Film Chip Resistors | 1/10W | HP02 | ±400ppm/℃ | ±1% ±5% | 1Ω≤R≤10Ω | File size:773.01 KB |
Details |
